Step 1 – Open CodePipeline : Open it by Searching or Click CodePipeline from sidebar on CodeDeploy

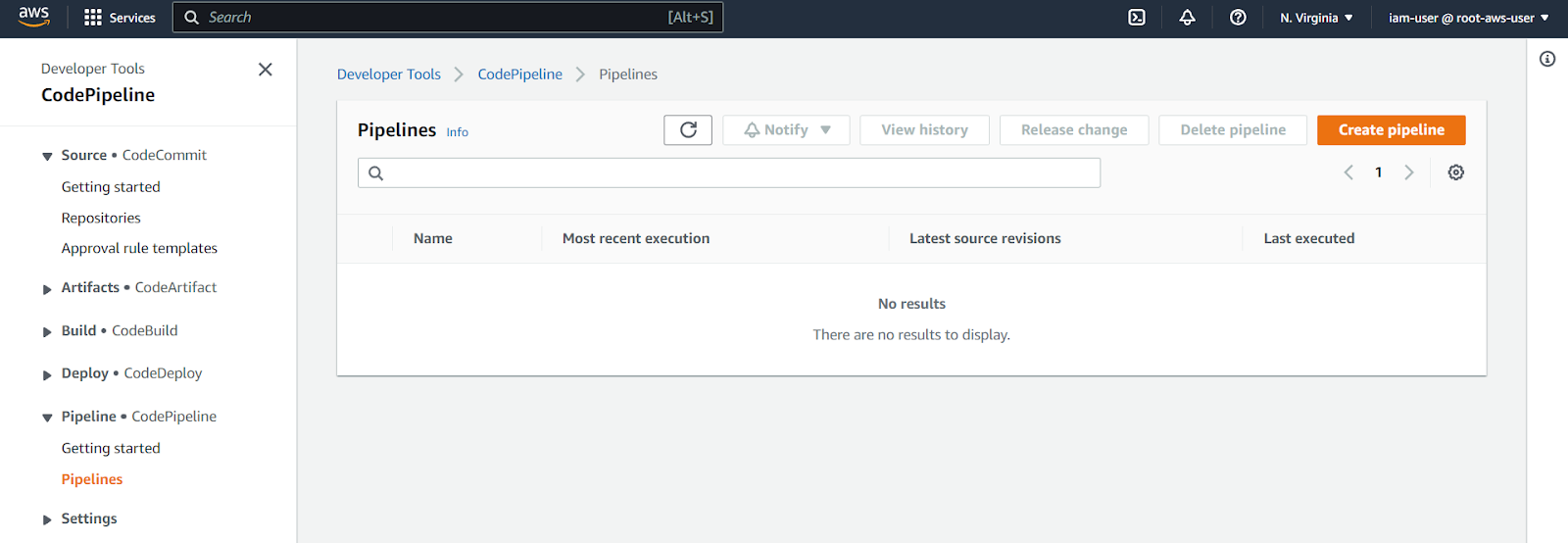

Step 2 – Create pipeline : Click on Create pipeline

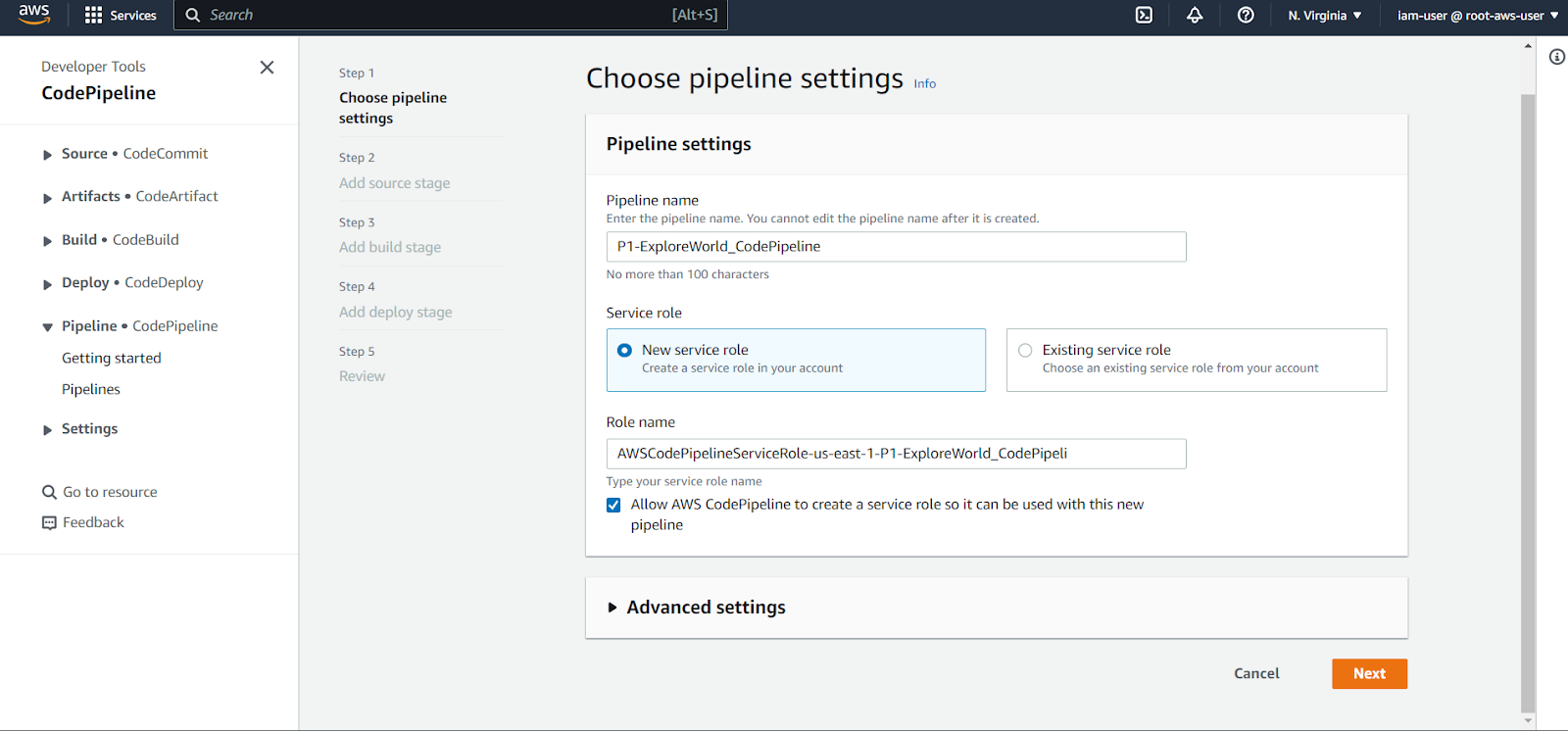

Step 3 – Choose pipeline settings :
| Steps | ||
| (i) | Choose pipeline settings | Pipeline name: <name-codepipeline-name> |
| Service role : Select New service role | ||
| Role name : <name-it or auto generates> | ||
| Tick Allow AWS CodePipeline to create a service role so it can be used with this new pipeline | ||
 | ||

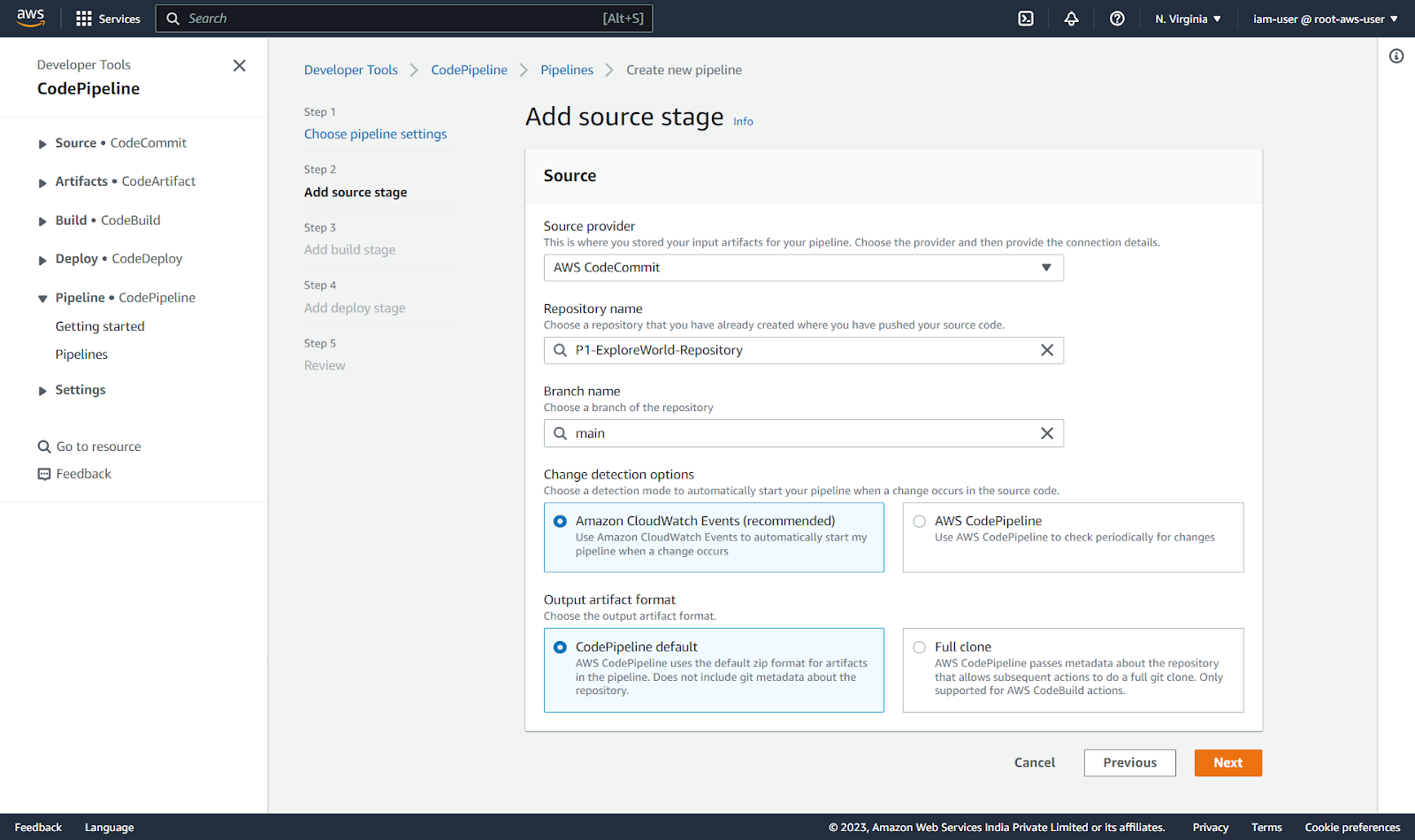

| (ii) | Add source stage | Source provider : AWSCodeCommit |
| Repository name : <previously-created-codecommit-repo> | ||
| Branch name : main | ||
| Change detection options : SelectAmazon CloudWatch Events (recommended) | ||
| Output artifact format : SelectCodePipeline default | ||
 | ||
| (iii) | Add build stag | Skip build stage |

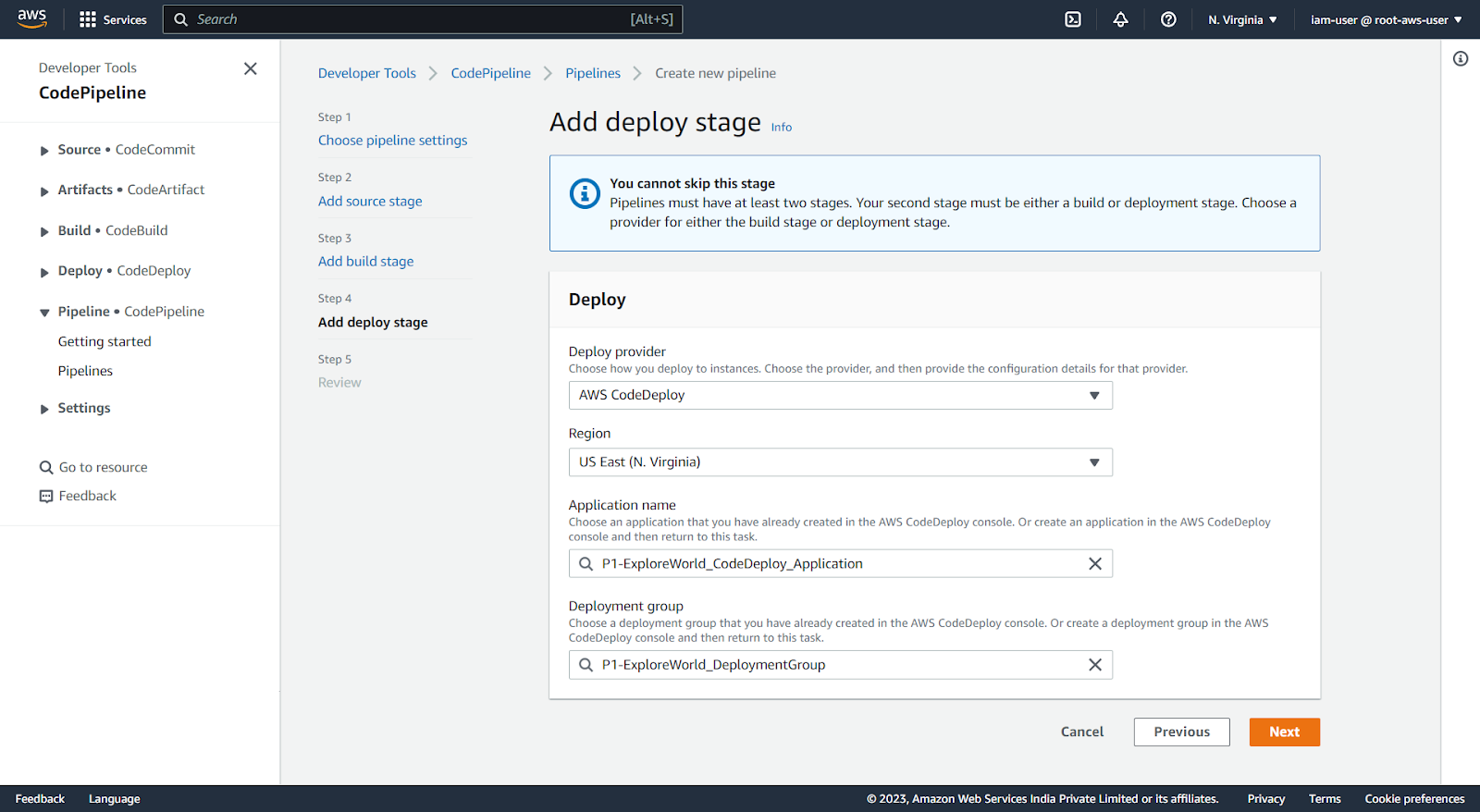

| (iv) | Add deploy stage | Deploy provider : AWS CodeDeploy |
| Region : N.Virginia | ||
| Application name : <your-application-name> | ||
| Deployment group : <your-Deployment-group-name> | ||
 | ||

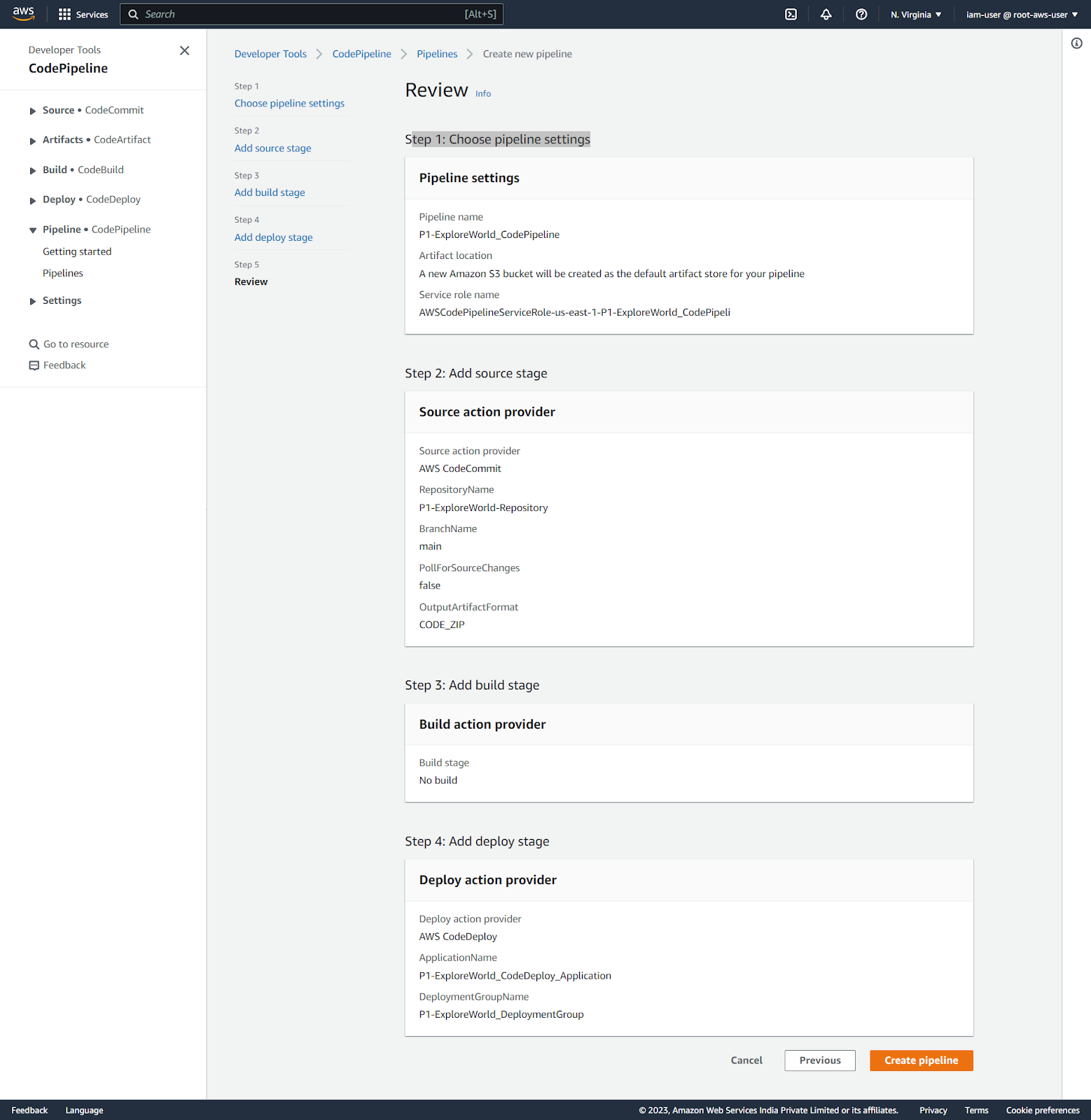

| (v) | Review | Review Details |
 | ||
| Click on Create pipeline at bottom |
